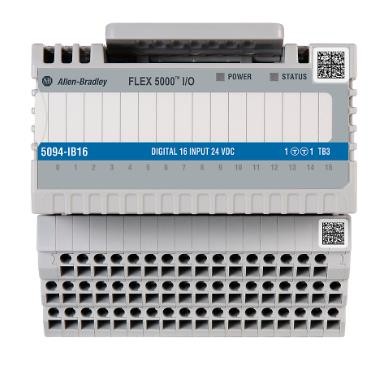

5094-IB16 and 5094-IB16XT Digital 16-point Sinking Input Modules

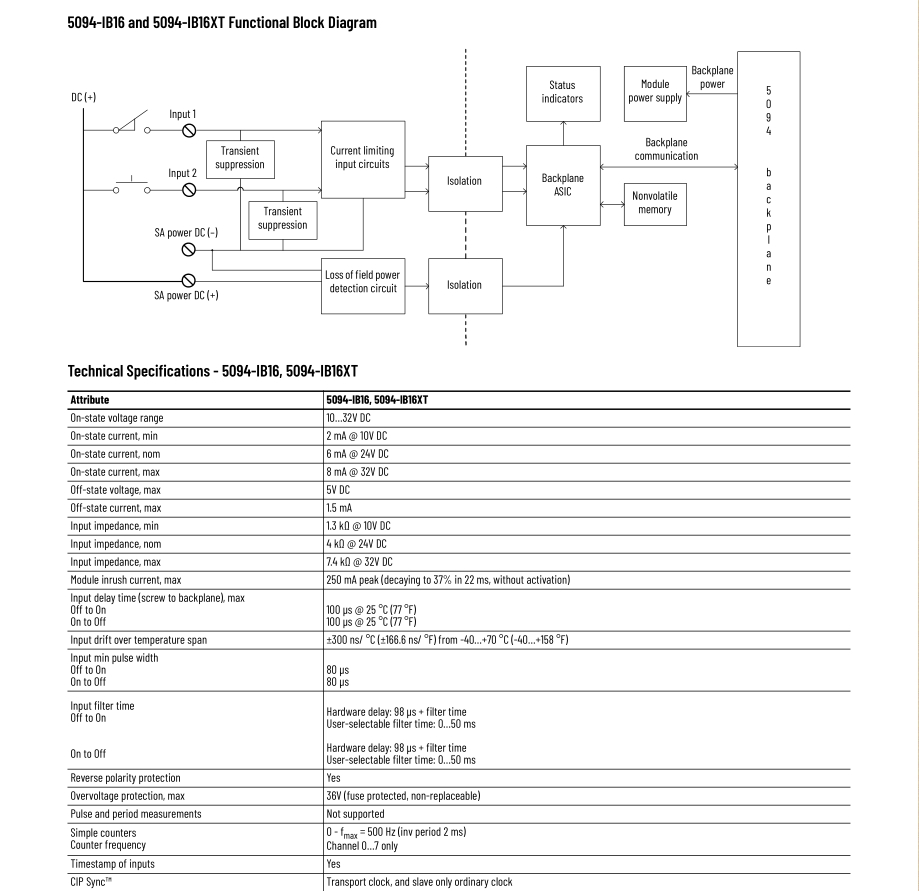

This figure shows a wiring diagram for the 5094-IB16 and 5094-IB16XT modules. You must connect a 24V DC power source to the left SA+/–

terminals to provide field-side power.

5094-IB16 and 5094-IB16XT Wiring Diagram。
